Measuring the deep ocean’s blood stream

February 8, 2022

The Labrador Sea between Canada and Greenland is often referred to as a “lung of the deep ocean” because it is one of only a handful of locations worldwide where oxygen from the atmosphere can enter the deepest layers of the ocean. The ability to sustain animal life in the deep ocean is directly dependent on this localized “deep breathing.” The process is driven by wintertime cooling at the sea surface, which makes oxygen-rich, near-surface waters denser and heavy enough to sink to depths of around 2 kms in winter.

This deep mixing of oxygen in the central Labrador Sea is only a first step in the deep ocean’s life support system. Deep, boundary currents then distribute the oxygen to the rest of the Atlantic Ocean and beyond. This way, oxygen that is “inhaled” in the Labrador Sea can support deep ocean life off Antarctica and even in the Pacific and Indian Oceans.

Scientists from Dalhousie University in Halifax, Canada, and the GEOMAR Helmholtz Centre for Ocean Research Kiel in Germany have now, for the first time, measured the flow of oxygen into the deep ocean interior that is carried by these deep currents. It’s the oceanographic equivalent of measuring the transport of oxygen into our bodies through our main artery or aorta.

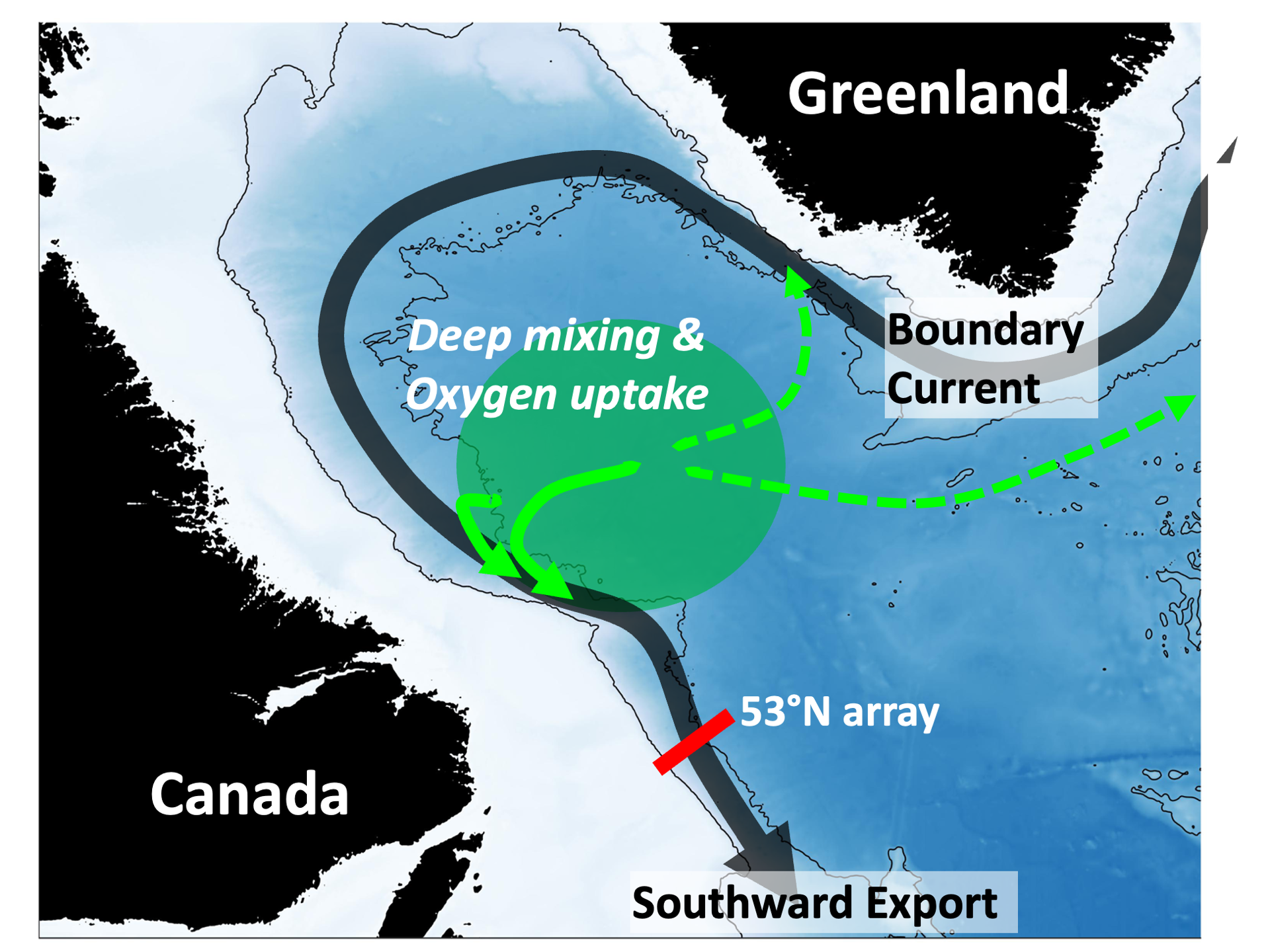

Map showing the area of deep “breathing” and export pathways. Solid green lines show the southwestward oxygen export observed in the study, and dashed lines show other possible routes for oxygen export.

Researchers unravelled the connection between oxygen uptake from the atmosphere and its onward transport into the interior using dissolved oxygen sensors that were mounted for 2 years on anchored cables which reached from the seafloor to near the surface. The sensors were deployed at depths of about 600m, where the scientists expected water from the deep mixing region in the centre of the Labrador Sea (the lung), to propagate. Their findings are reported in the journal Biogeosciences.

Jannes Koelling, lead author of the study, explains “We wanted to know how much of the oxygen that is breathed in each winter actually makes it into the deep, fast-flowing currents that transport it across the globe. The newly inhaled oxygen was clearly noticeable as a pulse of high oxygen concentration that passed our sensors between March and August.” (see illustration)

Evolution of oxygen concentrations at the moorings over a full calendar year. Purple colors highlight water that was recently “inhaled” in the deep mixing region.

The researchers’ new measurements revealed that about half of the oxygen taken up from the atmosphere in the central Labrador Sea in winter was injected into the deep boundary current over the following 5 months. While some of the remaining oxygen may have been consumed locally by fish and other organisms, the bulk most likely took an alternative route out of the deep mixing region.

According to Dr. Koelling: “The circulation of the Labrador Sea is complex, and we’ve only focused, so far, on the most direct export route. Some oxygen-rich water may be transported eastwards, instead of to the southwest, and it may enter the boundary current off Greenland before returning southwards, over a longer time-period.” These other pathways, shown as dashed lines in the map above, are being investigated with further studies, using additional oxygen sensors mounted on more moorings.

“This study is an example of how monitoring enabled by the latest ocean technology can help us fill in knowledge gaps in this important region,” says Dr. Dariia Atamanchuk, who leads the oxygen programme at Dalhousie.

The study and the new ability to monitor oxygen transport is timely given that climate model projections suggest an increased supply of freshwater, from melting glaciers and other climate-changes in the Arctic, could reduce the depth of wintertime mixing in the Labrador Sea in coming decades. This would make the Labrador Sea’s “breathing” shallower and reduce the life-supporting supply of oxygen to the deep sea.

The new findings are the result of a collaboration supported by the Ocean Frontier Institute, a transatlantic research organisation that connects researchers from several major institutions in Canada, Europe and the USA in a common focus on the climate-sensitive Northwest Atlantic Ocean.

Read the full article: Koelling, J., Atamanchuk, D., Karstensen, J., Handmann, P., and Wallace, D. W. R.: Oxygen export to the deep ocean following Labrador Sea Water formation, Biogeosciences, 19, 437–454,, 2022.
